Connection Box

Category: Geotechnical & Civil Engineering Instrumentats

RUGGED CONSTRUCTION VERSATILE DESIGN

Specifically designed and accessorized for fiber-optic sensing installation

Request A quote Contact Us

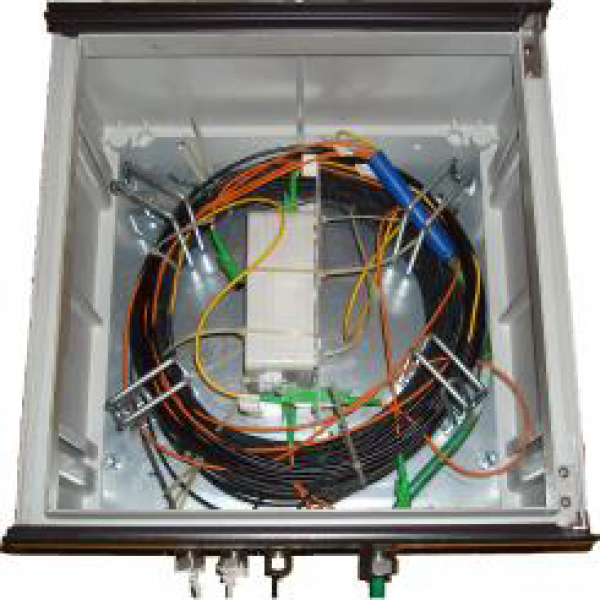

The connection box is used to connect the sensors to the main multi-fiber cable. The connection box contains the mating adapters required to mate the two male fiber optic connectors installed at the end of the sensor cables and at the end of the multi-fiber cable or to manually connect the sensors to the reading unit.

Connection boxes are available in four standard sizes. Other sizes are available on request. The small version can accommodate 1 sensor, the other versions can accommodate up to 10-24 and 36 sensors. The connection boxes for 24 and for 36 sensors can also accommodate SOFO splitters and MuST couplers.

If the passive part of the sensor has excessive length it is possible to coil the extra length in the largest box.



Specifications



    10 Channels   24 Channels   36 Channels
  Material   Fiberglass-reinforced
  unsaturated polyester, IP66		   Fiberglass-reinforced
  unsaturated polyester,
 IP66		   Fiberglass-reinforced
  unsaturated polyester, IP66
  Dimensions
  (height, width, depth)		   25 x 18 x 9 cm   40 x 40 x 20 cm   60 x 40 x 20 cm
  Weight   ~4 Kg   ~8 Kg   ~11.5 Kg
  Multifiber cable connections   1
  2
  (more on request)
  2
  (more on request)





Ordering Info

  •     Number of channels: 10, 24 or 36
  •     Option: all the connection boxes grant IP 65 protection. Additional protection can be reached embedding in grout or filling with foam.
  •     Option: Security lock key (only for 24Ch and 36 Ch connection boxes).
